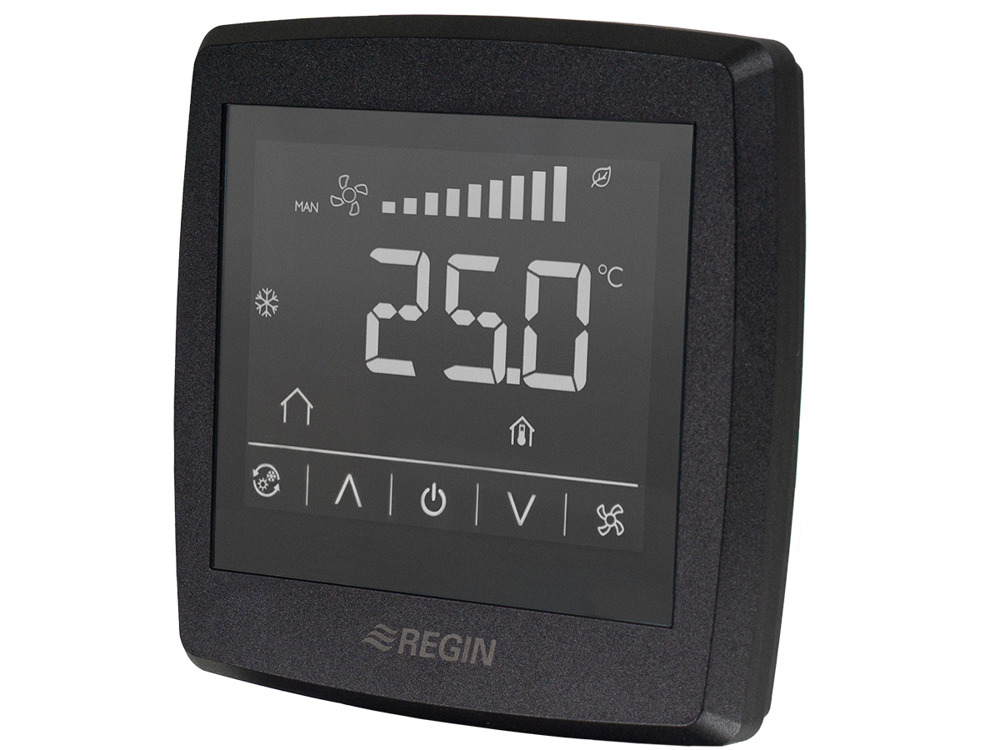

ED-RUD-2-BLACK Room unit with touch display
Room unit with backlit touch display, intended for use with advanced controllers. Black colour. NOTE! A backplate for either flush mounting or wall mounting must be added to the product. See ED-RUD-2-FM-BLACK (flush) or ED-RUD-2-WM-BLACK (wall).
Navigate on this page
Specifications
| Controller Type | Room Unit |
|---|---|
| Power Supply | 24V AC, 24V DC |
| Mounting | Wall mount |
| Display | Yes |
| Supported protocols | Modbus |
| Port type | RS-485 |
| Power Supply | 24VAC (22...26 V AC 50Hz / ), 1.5 VA |
| Ambient temperature | 0…50 °C °C |
| Dimensions, external (WxHxD) | 95x95x23 mm |
| Display type | LED-backlit LCD |
| RS485 ports | 1 |
| Colour, cover | Jet black RAL9005 |
| Protection class | IP30 |
|---|---|
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -20…70 °C °C |
| Weight, incl. packaging | 0.18 kg |
| Terminal wire size | 1.5 mm² |
| Material, housing | Polycarboante (PC) |
Software & documentation
Product sheet
Instructions
Other documentation
Accessories
ED-RUD-2-FM
Backplate for flush mounting of ED-RUD-2
ED-RUD-2-FM-BLACK
Backplate for flush mounting of ED-RUD-2. Black colour.
ED-RUD-2-WM
Backplate for wall mounting of ED-RUD and ED-RUD-2
ED-RUD-2-WM-BLACK
Backplate for wall mounting of ED-RUD and ED-RUD-2.
E-CABLE2-USB
Cable for USB connection
EDSP-K3
3 m cable for connecting an external display
EDSP-K10
10 m cable for connecting an external display
