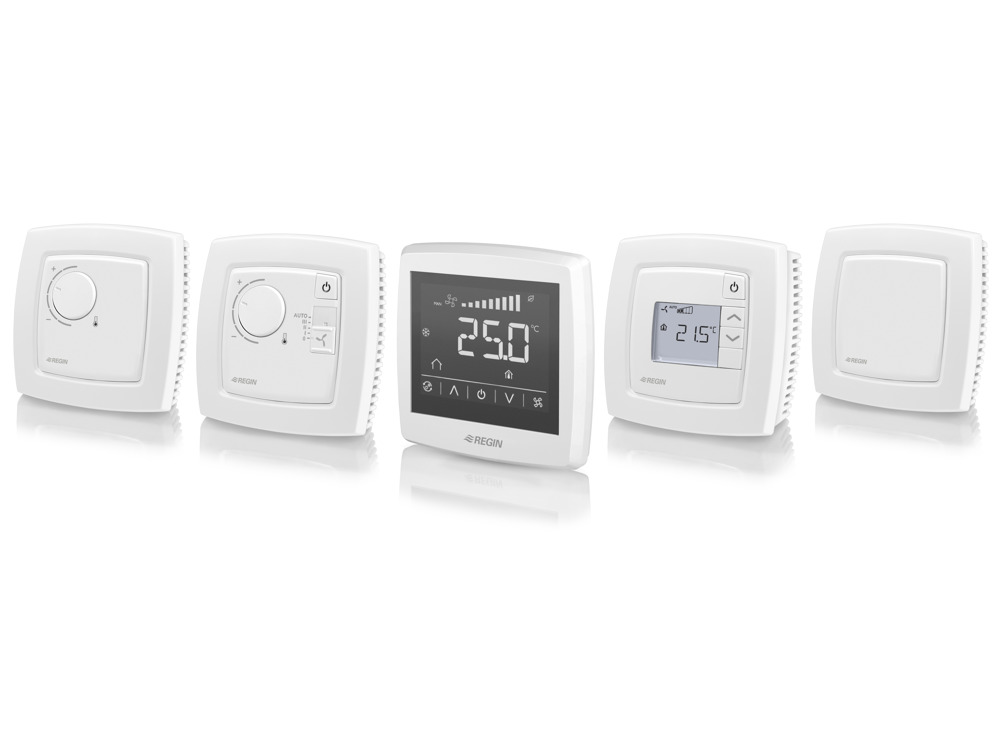

Room unit with touch display
Slim room unit with backlit touch display. The display is prepared for Plug'n Play with Regin's room controllers RegioEedo and RegioArdo and for easy configuration with the ventilation controllers CorrigoArdo and CorrigoVido. It can also be used with any Modbus master controller.
NOTE! A backplate for either flush mounting or wall mounting must be added to the product. See ED-RUD-2-FM (flush), ED-RUD-2-WM (wall) or ED-RUD-2-FM-BLACK (flush), ED-RUD-2-WM-BLACK (wall).
Navigate on this page
Articles
(2 st)-
ED-RUD-2Room unit with backlit touch display, intended for use with advanced controllers. NOTE! A backplate for either flush mounting or wall mounting must be added to the product. See ED-RUD-2-FM (flush) or ED-RUD-2-WM (wall).- Power Supply
- 24VAC (22...26 V AC 50Hz / ), 1.5 VA
- Dimensions, external (WxHxD)
- 95x95x23 mm
- Display type
- LED-backlit LCD
- RS485 ports
- 1
- Colour, cover
- Signal white RAL9003
-
ED-RUD-2-BLACKRoom unit with backlit touch display, intended for use with advanced controllers. Black colour. NOTE! A backplate for either flush mounting or wall mounting must be added to the product. See ED-RUD-2-FM-BLACK (flush) or ED-RUD-2-WM-BLACK (wall).
- Power Supply
- 24VAC (22...26 V AC 50Hz / ), 1.5 VA
- Dimensions, external (WxHxD)
- 95x95x23 mm
- Display type
- LED-backlit LCD
- RS485 ports
- 1
- Colour, cover
- Jet black RAL9005
Specifications
| Protection class | IP30 |
|---|---|
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -20…70 °C |
| Weight, incl. packaging | 0.18 kg |
| Terminal wire size | 1.5 mm² |
| Material, housing | Polycarboante (PC) |
Software & documentation
Product sheet
Instructions
Other documentation
Accessories
Backplate for flush mounting of ED-RUD-2
Backplate for flush mounting of ED-RUD-2. Black colour.
Backplate for wall mounting of ED-RUD and ED-RUD-2
Backplate for wall mounting of ED-RUD and ED-RUD-2.
Cable for USB connection
3 m cable for connecting an external display
10 m cable for connecting an external display
