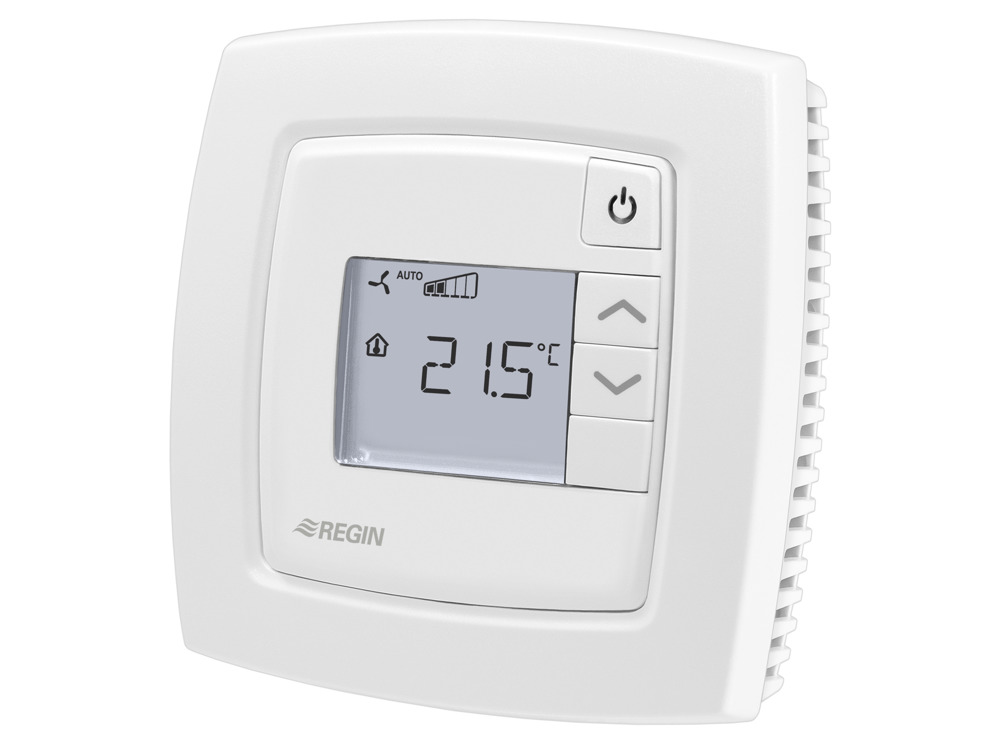

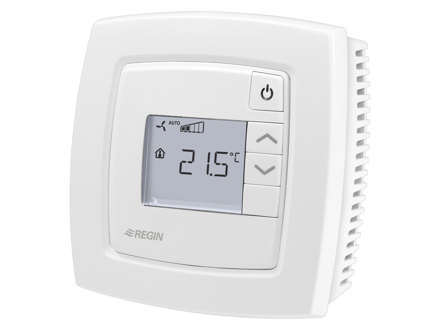

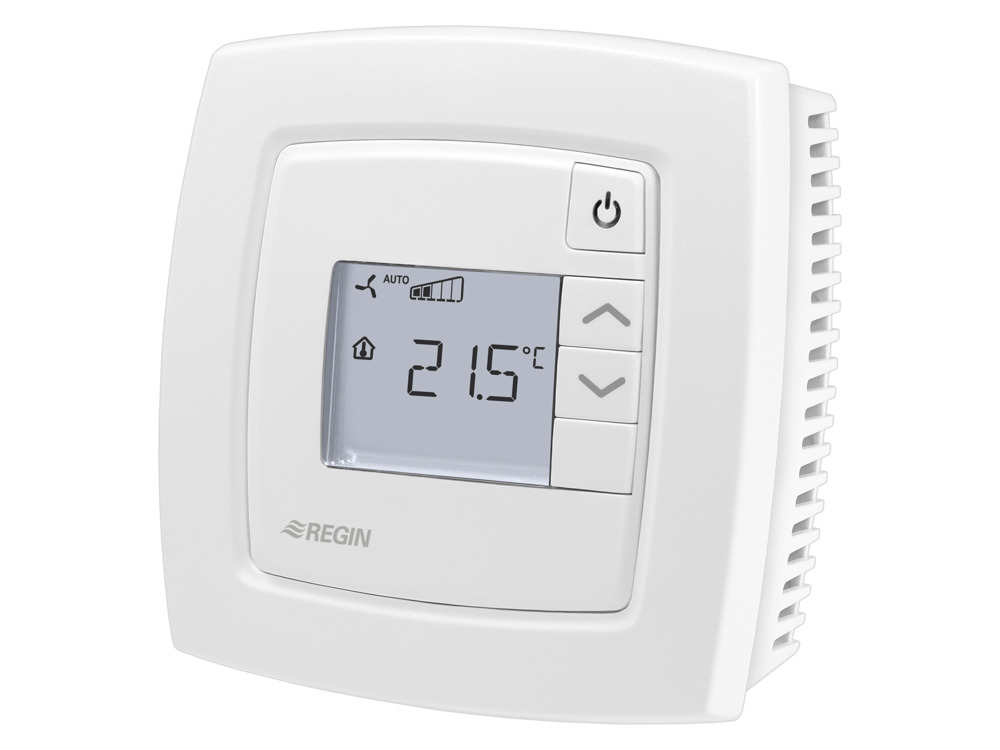

ED-RU-DOCS External room units
The ED-RU units can be connected to several different products and could, for example, be used to control an air handling unit running a ventilation application. They can be used to change fan speed, set temperature, extended running, etc. at a distance of up to 300 m.
Navigate on this page
Specifications
| Controller Type | Room Unit |
|---|---|
| Power Supply | 24V AC |
| Mounting | Wall mount |
| Display | Yes |
| Supported protocols | EXOline |
| Port type | RS-485 |
| Power Supply | 24VAC (18...30 V AC 50/60Hz / ), 0.8 VA |
| Ambient temperature | 0…50 °C °C |
| Dimensions, external (WxHxD) | 95x95x28 mm |
| RS485 ports | 1 |
| Colour, cover | White RAL9003 |
| Occupancy button | Yes |
| Multi-function button | No |
| 3-step fan control | No |
| Setpoint knob | No |
| Hidden setpoint | No |
| CO2 Sensor | Yes |
| Display | Yes |
| Protection class | IP20 |
|---|---|
| Ambient humidity (non-condensing) | 0…90 % RH |
| Storage temperature | -20…70 °C °C |
Software & documentation
Product sheet
Instructions
Other documentation
Accessories
EDSP-SPLIT
Cable splitter for connecting two display units to one controller
