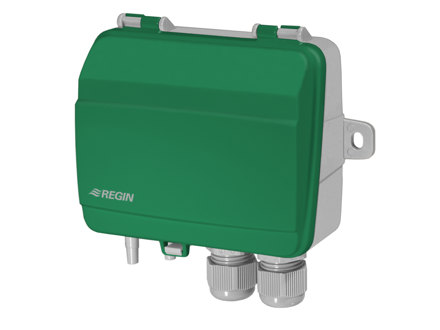

PDT25 Presigo (PDT…) - Differential pressure transmitters with analogue outputs

Single or dual port differential pressure transmitters with one or two analogue outputs. The transmitter can be configured for 0-10 V or 4-20 mA output signal. Selectable working range.

Specifications

Specifications for PDT25
Power Supply 24VAC/DC (21...27 V AC 50Hz / 21...27 V DC), 2.7 VA
Dimensions, external (WxHxD) 120x40x112 mm
Max Overvoltage on any terminal Max. ±18 V (referenced to GND) V
Analogue output load impedance 0...10v Load impedance ≥ 10 kΩ, Output impedance ≤ 35Ω
Analogue output load impedance 4...20mA Output is actively sourced into a resistive load impedance to signal ground. The load impedance must be between 40...500Ω
Pressure, range sensor 0…2500 Pa
Accuracy, pressure sensor 1 ≤ 1 % full scale %
Max. allowed diff. Pressure sensor 1 50 kPa
Specifications for Presigo (PDT…) - Differential pressure transmitters with analogue outputs
Protection class IP54
Ambient humidity (non-condensing) 0…95 % RH
Mounting Wall
Media Air, non-combustible and non-aggressive gases
Analogue outputs type (AO) 0...10V or 4...20mA
Pressure, range sensor 0…1250 Pa
Cable gland M16x1,5
Terminal type Screw Terminal
Terminal wire size 1.5 mm²
Material, housing Polycarbonate (PC)
Material, base Polycarbonate (PC)
