Regin

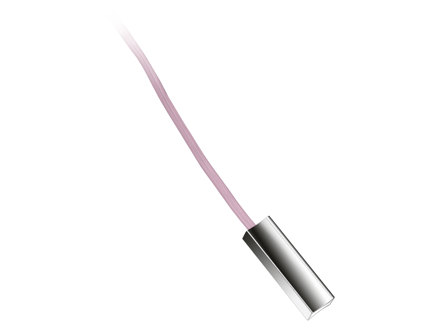

TG-A1/PT100 Clamp-on sensor with cable
Clamp-on sensor, including clamp (Ø 40 mm max.)
Navigate on this page
Specifications
| Mounting | Clamp-on |
|---|---|
| Dimensions, external (WxHxD) | 10x7x35 mm |
| Media temp limits | -30…150 °C |
| Cable length | 1.5 m |
| Time constant | 13 s |
| Element type | PT100 |
| Measuring range, temp | -30…150 °C |
| Sensor element, class | DIN Class B: ±(0.3 + .005 |T|°C) |
| Protection class | IP65 |
|---|---|
| Media | Clamp-on sensor with cable for mounting on pipe |
| Material cable | Silicone |
| Material sensor | Nickel-plated copper tube |
Software & documentation
Product sheet
Accessories
PASTA-20
Heat-conductive paste in tube, 20 g
