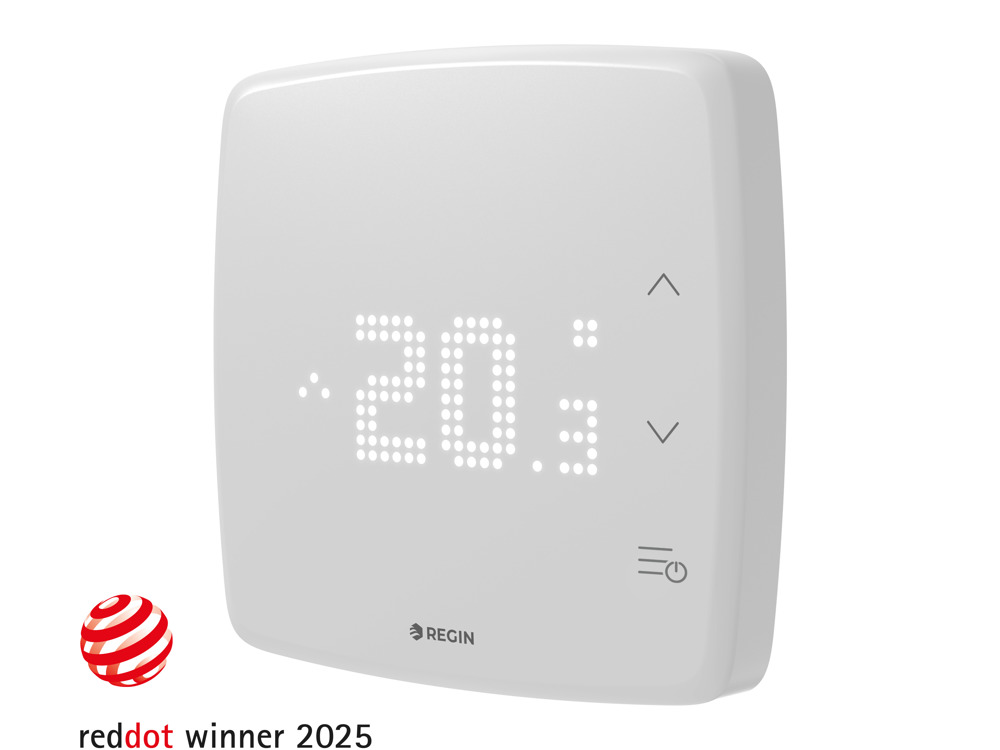

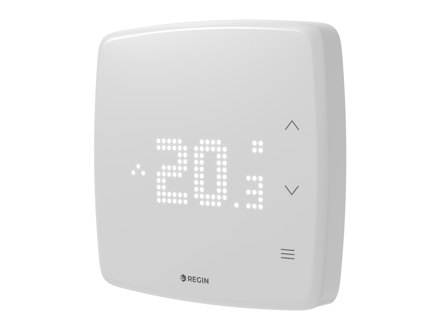

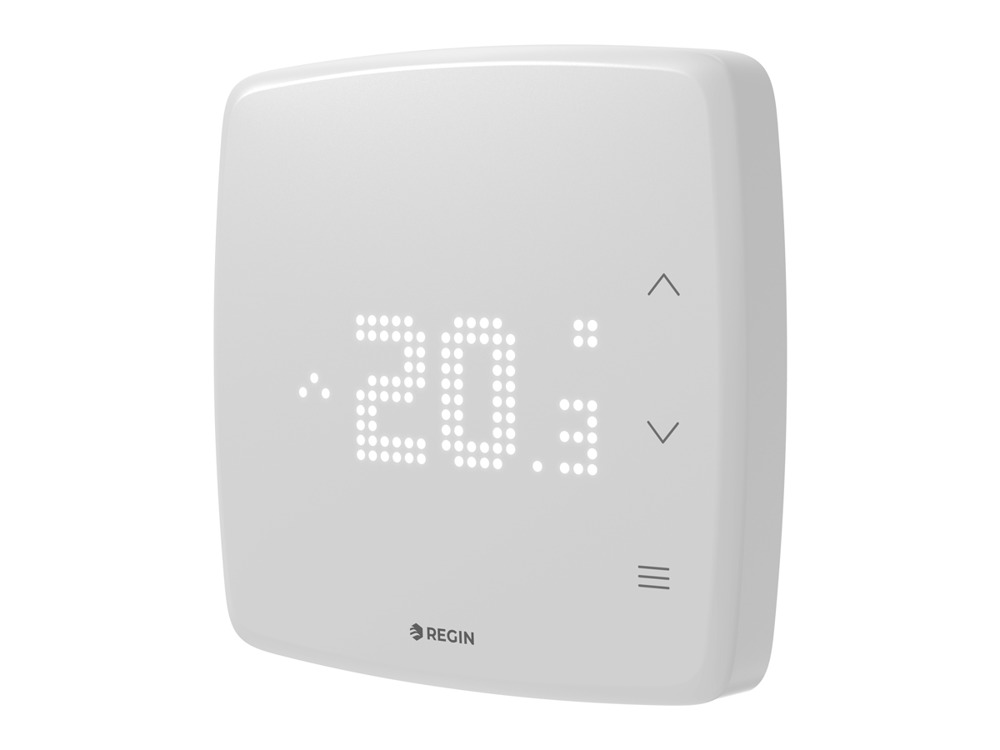

Regio RCX
Regio RCX are smart room controllers with an attractive sleek minimalistic modern design that provides the ability to seamlessly install the product in design-critical environments. With built-in measuring sensors (temperature, humidity, CO2, VOC, and PIR for motion) and a smart user interface displaying LEDs through translucent material, this product is both easy to understand and user-friendly, even for infrequent users. The LED light can be fine-tuned to provide an optimal user experience, ensuring clear visibility of the display even from a distance in the room. During the night, the display can be turned off completely or be dimmed.
With demand-based control you can reach optimal comfort while minimizing energy consumption in sustainable buildings of the future. The Regio RCX room controller has a very flexible application for the installer that can configure almost every possible room application, without programming knowledge. It’s also installation-friendly with detachable bottom plate with terminals. Terminals are detachable to simplify measurement for maintenance. Controllers in different rooms and zones can be connected to a field bus enabling communication with a central SCADA system, via RS485 (BACnet, Modbus or EXOline).
Regio RCX room controller also seamlessly integrates with our building management system Arrigo, our EXO-system range, as well as different sensors for a comprehensive solution. The stand-alone Regio controllers can easily be configured for a specific application via the Regin:GO app or Application Tool.
Navigate on this page
Articles
(7 st)-
RCX-T-D- Power Supply
- 24VAC/DC (18...28 V AC 50/60Hz / 20...36 V DC), 2.5 VA
- RS485 ports
- 1
- UI
- 2
- AO
- 2
- UO
- 2
- Humidity Sensor
- No
- CO2 Sensor
- No
- VOC Sensor
- No
- PIR Sensor
- No
- Display
- Yes
-
RCX-TC-D
- Power Supply
- 24VAC/DC (18...28 V AC 50/60Hz / 20...36 V DC), 2.5 VA
- RS485 ports
- 1
- UI
- 2
- AO
- 2
- UO
- 2
- Humidity Sensor
- No
- CO2 Sensor
- Yes
- VOC Sensor
- No
- PIR Sensor
- No
- Display
- Yes
-
RCX-TH-D
- Power Supply
- 24VAC/DC (18...28 V AC 50/60Hz / 20...36 V DC), 2.5 VA
- RS485 ports
- 1
- UI
- 2
- AO
- 2
- UO
- 2
- Humidity Sensor
- Yes
- CO2 Sensor
- No
- VOC Sensor
- No
- PIR Sensor
- No
- Display
- Yes
-
RCX-THCVP-D
- Power Supply
- 24VAC/DC (18...28 V AC 50/60Hz / 20...36 V DC), 2.5 VA
- RS485 ports
- 1
- UI
- 2
- AO
- 2
- UO
- 2
- Humidity Sensor
- Yes
- CO2 Sensor
- Yes
- VOC Sensor
- Yes
- PIR Sensor
- Yes
- Display
- Yes
-
RCX-T
- Power Supply
- 24VAC/DC (18...28 V AC 50/60Hz / 20...36 V DC), 2.5 VA
- RS485 ports
- 1
- UI
- 2
- AO
- 2
- UO
- 2
- Humidity Sensor
- No
- CO2 Sensor
- No
- VOC Sensor
- No
- PIR Sensor
- No
- Display
- No
-
RCX-TC
- Power Supply
- 24VAC/DC (18...28 V AC 50/60Hz / 20...36 V DC), 2.5 VA
- RS485 ports
- 1
- UI
- 2
- AO
- 2
- UO
- 2
- Humidity Sensor
- No
- CO2 Sensor
- Yes
- VOC Sensor
- No
- PIR Sensor
- No
- Display
- No
-
RCX-THCVP
- Power Supply
- 24VAC/DC (18...28 V AC 50/60Hz / 20...36 V DC), 2.5 VA
- RS485 ports
- 1
- UI
- 2
- AO
- 2
- UO
- 2
- Humidity Sensor
- Yes
- CO2 Sensor
- Yes
- VOC Sensor
- Yes
- PIR Sensor
- Yes
- Display
- No
Specifications
| Protection class | IP20 |
|---|---|
| Ambient humidity (non-condensing) | 0…90 % RH |
| Storage temperature | -20…70 °C |
| Mounting | Wall (separate backplate) |
| Weight, incl. packaging | 0.115 kg |
| Universal inputs type (UI) | Digital In, 0-10V, pt1000 (UI1 only) |
| Analogue outputs type (AO) | 0-10V, 2mA, AO2 can be used as CI |
| Universal outputs type (UO) | 0-10V, Digital Out (Total 2A on UO1 and UO2) |
| Accuracy, temperature | ±0,5K (15-30°C) K |
| Terminal wire size | 2.1 mm² |
| Material, Fire resistance | UL94 V-2 |
| Material, housing | Polycarbonate (PC) |
| Material, cover | RAL9003 Polar White |
