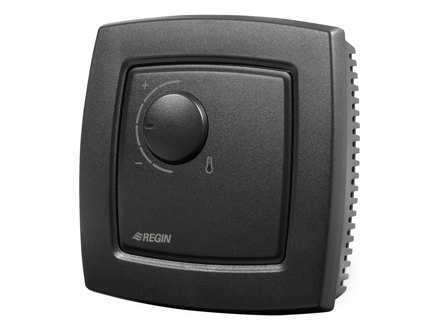

RC-C3-BLACK Regio Midi – Pre-programmed room controllers with communication
Regio Midi are controllers with a built-in temperature sensor and an RS485 communication port. Controllers in different rooms and zones can be connected to a bus line enabling communication with a central SCADA system via RS485 (EXOline, BACnet (only display versions) or Modbus).
Navigate on this page
Specifications
Power Supply | 24VAC (18...30 V AC 50/60Hz / ), 2.5 VA |
---|---|
Dimensions, external (WxHxD) | 95x95x31 mm |
Supported protocols | EXOline, Modbus |
AI | 1 |
UI | 1 |
DI | 1 |
DI/CI | 1 |
UO | 3 |
DO | 0 |
Colour, cover | RAL9005 |
Occupancy button | No |
3-step fan control | No |
EC Fan Control | Yes |
Setpoint knob | Yes |
Hidden setpoint | No |
CO2 Sensor | No |
Display | No |
Protection class | IP20 |
---|---|
Ambient humidity (non-condensing) | 0…90 % RH |
Storage temperature | -20…70 °C |
Mounting | Room |
Weight, incl. packaging | 0.11 kg |
Analogue inputs type (AI) | PT1000, 0...50°C, 0...10 V |
Universal inputs type (UI) | PT1000 / DI |
Condensation inputs type (CI) | Digital input for condensation detector KG-A/1 |
Universal outputs type (UO) | DO 24 V AC/1A, AO 0...10 V/5mA |
Accuracy, temperature 1 | ±0.5 °K @ 15...30 °C |
Material, housing | Polycarbonate, PC |
Software & documentation
Product sheet
Instructions
Accessories

RB3
Relay unit for RC-...F... controllers

X1178
Power interface for RC-...F... controllers

KG-A/1
Condensation detector for Regio controllers, 1 m cable length

RC-CONN:10
A set of 10 connector plates for RC units

RCC-CONN:10
A set of 10 connector plates for RCC units

RC-TEST
Service adapter for all Regio room units
