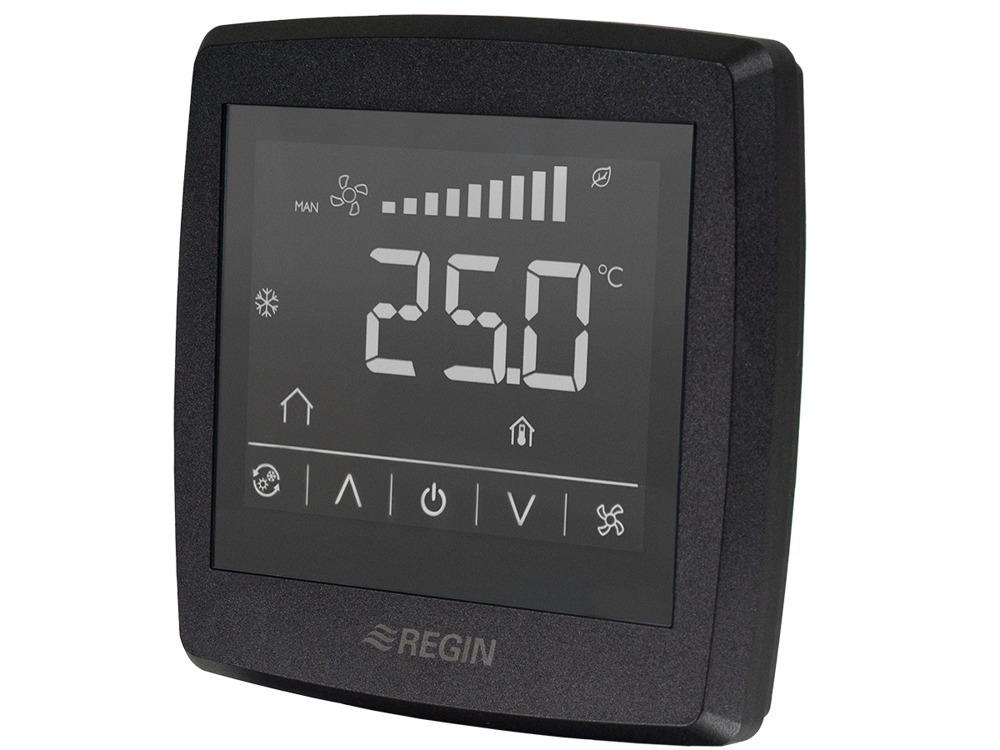

RCFD-230C-BLACK RCFD-230C – Room thermostat with touch display and communication for fan-coil applications

Flush-mounted fan-coil controller with communication via RS485

Specifications

Specifications for RCFD-230C-BLACK
Controller Type Room Control
Power Supply 230 V AC
Mounting Wall mount
Display Yes
Supported protocols Modbus
Port type RS-485
Power Supply 230VAC (207...253 V AC 50/60Hz / ), 3.0 VA
Dimensions, external (WxHxD) 95x95x50 mm
Supported protocols Modbus
AI 1
DI 1
DO 5
Colour, cover RAL9005
Specifications for RCFD-230C – Room thermostat with touch display and communication for fan-coil applications
Protection class IP30
Ambient humidity (non-condensing) 10…90 % RH
Storage temperature -20…70 °C
Mounting Room
Weight, incl. packaging 0.24 kg
Analogue inputs type (AI) PT1000
Digital outputs type (DO) 230VAC/5A
Accuracy, temperature 1 ±0.5 °K @ 0...50 °C
Terminal type Screw Terminal
Terminal wire size 1.5 mm²
Material, Fire resistance UL 94 V-0
Material, housing Polycarbonate, PC
