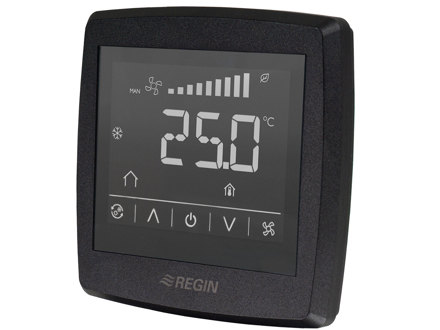

RCFD-230C – Room thermostat with touch display and communication for fan-coil applications

Slim electronic fan-coil thermostat for room temperature control. Automatic or manual change-over between heating and cooling. The thermostat has a function for 3-speed fan control (for fan-coil), a built-in temperature sensor, backlit touch display, and an digital input for a hotel key card switch or an occupancy detector.

Articles

(2 st)
  • RCFD-230C - Regin
    RCFD-230C
    Flush-mounted fan-coil controller with communication via RS485
    Controller Type
    Room Control
    Power Supply
    230 V AC
    Mounting
    Wall mount
    Display
    Yes
    Supported protocols
    Modbus
    Port type
    RS-485
    Power Supply
    230VAC (207...253 V AC 50/60Hz / ), 3.0 VA
    Dimensions, external (WxHxD)
    95x95x50 mm
    Supported protocols
    Modbus
    AI
    1
    DI
    1
    DO
    5
    Colour, cover
    RAL9003
  • RCFD-230C-BLACK - Regin
    RCFD-230C-BLACK
    Flush-mounted fan-coil controller with communication via RS485
    Controller Type
    Room Control
    Power Supply
    230 V AC
    Mounting
    Wall mount
    Display
    Yes
    Supported protocols
    Modbus
    Port type
    RS-485
    Power Supply
    230VAC (207...253 V AC 50/60Hz / ), 3.0 VA
    Dimensions, external (WxHxD)
    95x95x50 mm
    Supported protocols
    Modbus
    AI
    1
    DI
    1
    DO
    5
    Colour, cover
    RAL9005

Specifications

Specifications for RCFD-230C – Room thermostat with touch display and communication for fan-coil applications
Protection class IP30
Ambient humidity (non-condensing) 10…90 % RH
Storage temperature -20…70 °C
Mounting Room
Weight, incl. packaging 0.24 kg
Analogue inputs type (AI) PT1000
Digital outputs type (DO) 230VAC/5A
Accuracy, temperature 1 ±0.5 °K @ 0...50 °C
Terminal type Screw Terminal
Terminal wire size 1.5 mm²
Material, Fire resistance UL 94 V-0
Material, housing Polycarbonate, PC
