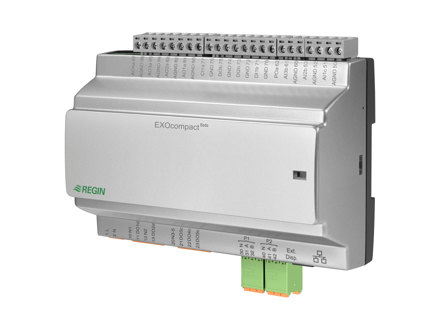

XCE163W-1 EXOcompact Eedo freely programmable controllers

EXOcompact Eedo is a 230 V AC freely programmable controller. The controller provides built-in communication via EXOline, Modbus or BACnet for integration into Arrigo BMS or other SCADA systems. It can be used either as a stand-alone unit or as part of a larger system. The controller is well suited to act as a room controller and connects seamlessly to the room units in Regin’s ED-RU-… series.

Specifications

Specifications for XCE163W-1
Controller Type Freely Programmable
Power Supply 230 V AC
Mounting DIN-rail, Wall mount
Display No
Supported protocols EXOline, Modbus, BACnet, EFX
Port type Ethernet, RS-485, Display
Power Supply 230VAC (207...253 V AC 50/60Hz / ), 11.0 VA
Dimensions, external (WxHxD) 149x121x58 mm
Display type -
RS485 ports 2
Ethernet ports 1
AI 3
DI 3
CI 1
AO 4
DO 5
Specifications for EXOcompact Eedo freely programmable controllers
Battery life time 5 years
Protection class IP20
Ambient humidity (non-condensing) 0…95 % RH
Storage temperature -20…70 °C
Casing Euro DIN Norm
Weight, incl. packaging 0.37 kg
