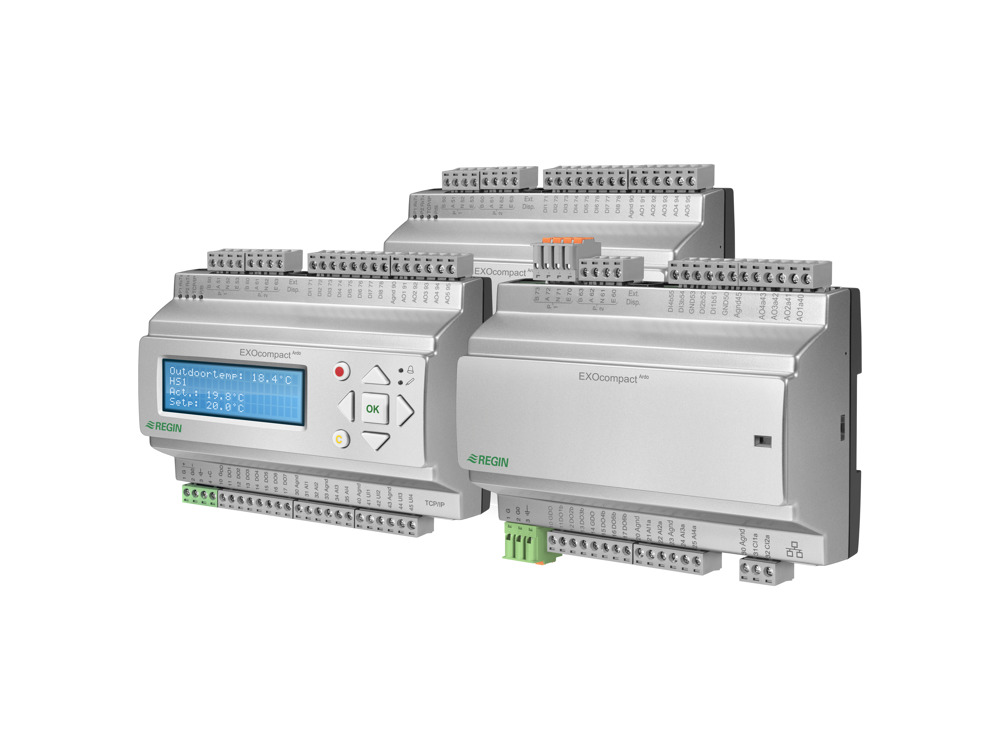

EXOcompact Ardo freely programmable controllers

Small and compact controller with different types of communication, with or without built-in display. EXOcompact Ardo is equipped with various communication ports. Therefore it can either act as a stand-alone unit or be integrated with Arrigo BMS or other SCADA systems.

User-friendly tools are available for flexible handling and easy access via the web server.

Specifications
Software & documentation
Accessories

Articles

(10 st)
  • XCA152W-4 - Regin
    XCA152W-4
    Power Supply
    24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 4.0 VA
    Dimensions, external (WxHxD)
    149x121x58 mm
    Display type
    -
    Supported protocols
    EXOline, Modbus, BACnet, EFX
    RS485 ports
    1
    Ethernet ports
    1
    M-Bus ports
    0
    Display ports
    1
    AI
    4
    UI
    0
    DI
    4
    CI
    0
    AO
    3
    DO
    4
    Number of I/O
    4+3
  • XCA152DW-4 - Regin
    XCA152DW-4
    Power Supply
    24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 4.0 VA
    Dimensions, external (WxHxD)
    149x121x58 mm
    Display type
    Backlit, LCD, 4*20 char
    Supported protocols
    EXOline, Modbus, BACnet, EFX
    RS485 ports
    1
    Ethernet ports
    1
    M-Bus ports
    0
    Display ports
    1
    AI
    4
    UI
    0
    DI
    4
    CI
    0
    AO
    3
    DO
    4
    Number of I/O
    4+3
  • XCA153W-4 - Regin
    XCA153W-4
    Power Supply
    24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 4.0 VA
    Dimensions, external (WxHxD)
    149x121x58 mm
    Display type
    -
    Supported protocols
    EXOline, Modbus, BACnet, EFX
    RS485 ports
    2
    Ethernet ports
    1
    M-Bus ports
    0
    Display ports
    1
    AI
    4
    UI
    0
    DI
    4
    CI
    0
    AO
    3
    DO
    4
    Number of I/O
    4+3
  • XCA153DW-4 - Regin
    XCA153DW-4
    Power Supply
    24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 4.0 VA
    Dimensions, external (WxHxD)
    149x121x58 mm
    Display type
    Backlit, LCD, 4*20 char
    Supported protocols
    EXOline, Modbus, BACnet, EFX
    RS485 ports
    2
    Ethernet ports
    1
    M-Bus ports
    0
    Display ports
    1
    AI
    4
    UI
    0
    DI
    4
    CI
    0
    AO
    3
    DO
    4
    Number of I/O
    4+3
  • XCA203W-4 - Regin
    XCA203W-4
    Power Supply
    24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 4.0 VA
    Dimensions, external (WxHxD)
    149x136x58 mm
    Display type
    -
    Supported protocols
    EXOline, Modbus, BACnet, EFX
    RS485 ports
    2
    Ethernet ports
    1
    M-Bus ports
    0
    Display ports
    1
    AI
    4
    UI
    0
    DI
    4
    CI
    2
    AO
    4
    DO
    6
    Number of I/O
    4+4
  • XCA282W-4 - Regin
    XCA282W-4
    Power Supply
    24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 4.0 VA
    Dimensions, external (WxHxD)
    149x121x58 mm
    Display type
    -
    Supported protocols
    EXOline, Modbus, BACnet, EFX
    RS485 ports
    2
    Ethernet ports
    1
    M-Bus ports
    0
    Display ports
    1
    AI
    4
    UI
    4
    DI
    8
    CI
    0
    AO
    5
    DO
    7
    Number of I/O
    4+5
  • XCA282DW-4 - Regin
    XCA282DW-4
    Power Supply
    24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 4.0 VA
    Dimensions, external (WxHxD)
    149x121x58 mm
    Display type
    Backlit, LCD, 4*20 char
    Supported protocols
    EXOline, Modbus, BACnet, EFX
    RS485 ports
    1
    Ethernet ports
    1
    M-Bus ports
    0
    Display ports
    1
    AI
    4
    UI
    4
    DI
    8
    CI
    0
    AO
    5
    DO
    7
    Number of I/O
    4+5
  • XCA283W-4 - Regin
    XCA283W-4
    Power Supply
    24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 4.0 VA
    Dimensions, external (WxHxD)
    149x121x58 mm
    Display type
    -
    Supported protocols
    EXOline, Modbus, BACnet, EFX
    RS485 ports
    2
    Ethernet ports
    1
    M-Bus ports
    0
    Display ports
    1
    AI
    4
    UI
    4
    DI
    8
    CI
    0
    AO
    5
    DO
    7
    Number of I/O
    4+5
  • XCA283DW-4 - Regin
    XCA283DW-4
    Power Supply
    24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 4.0 VA
    Dimensions, external (WxHxD)
    149x121x58 mm
    Display type
    Backlit, LCD, 4*20 char
    Supported protocols
    EXOline, Modbus, BACnet, EFX
    RS485 ports
    2
    Ethernet ports
    1
    M-Bus ports
    0
    Display ports
    1
    AI
    4
    UI
    4
    DI
    8
    CI
    0
    AO
    5
    DO
    7
    Number of I/O
    4+5
  • XCA283DWM-4 - Regin
    XCA283DWM-4
    Power Supply
    24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 4.0 VA
    Dimensions, external (WxHxD)
    149x121x58 mm
    Display type
    Backlit, LCD, 4*20 char
    Supported protocols
    EXOline, Modbus, BACnet, EFX
    RS485 ports
    1
    Ethernet ports
    1
    M-Bus ports
    1
    Display ports
    1
    AI
    4
    UI
    4
    DI
    8
    CI
    0
    AO
    5
    DO
    7
    Number of I/O
    4+5

Specifications

Specifications for EXOcompact Ardo freely programmable controllers
Battery life time 5 years
Protection class IP20
Ambient humidity (non-condensing) 0…95 % RH
Storage temperature -20…70 °C
Mounting DIN-rail
Casing Euro Norm
Weight, incl. packaging 0.4 kg
Terminal block width 5 mm
Terminal type Screw Terminal
Detachable terminal Yes
Terminal wire size 1.5 mm²
Material, housing Polycarbonate

Software & documentation

Product sheet

Manuals

Other documentation

Accessories

ED-T7

External touch screen display

E3-DSP

External display

FMCE

Front mounting kit, room for one controller

PLTCE

Set of angled plug-in terminal blocks

FMK2

Front mounting kit, 12 modules

TP-AE

Terminal protection kit for Ardo and Eedo controllers

EDSP-K3

3 m cable for connecting an external display

EDSP-K10

10 m cable for connecting an external display

E-CABLE2-USB

Cable for USB connection

EDSP-SPLIT

Cable splitter for connecting two display units to one controller

ED-T70W-2

External display
