Regin

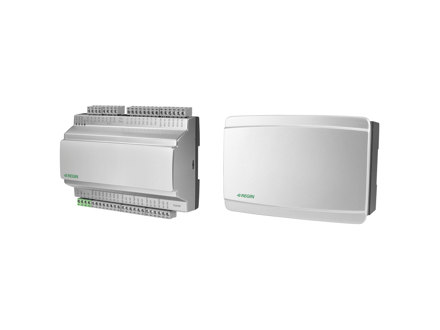

IO-A28MIXW-3-BEM Expansion units
Ardo expansion unit with 28 I/O:s
Navigate on this page
Specifications
| Power Supply | 24 V ~ (21…27 V ~ 50…60 Hz) / 20…36 V DC / 4VA |
|---|---|
| Dimensions, external (WxHxD) | 149x121x58 mm |
| Number of modules | 8.5 |
| RS485 ports | 1 |
| Ethernet ports | 1 |
| AI | 4 |
| UI | 4 |
| DI | 8 |
| CI | 0 |
| AO | 5 |
| UA | 0 |
| DO | 7 |
| Number of I/O | 4+5 |
| Battery life time | 5 years |
|---|---|
| Protection class | IP20 |
| Ambient humidity (non-condensing) | 0…95 % RH |
| Storage temperature | -20…70 °C |
| Mounting | DIN-rail |
| Weight, incl. packaging | 0.4 kg |
