Regin

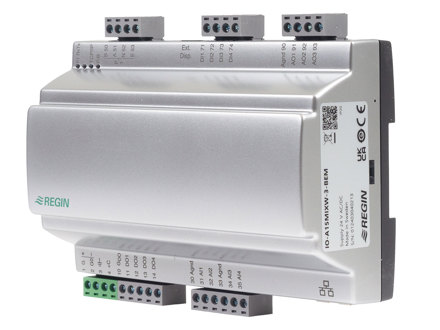

IO-A15MIXW-3-BEM Expansion units

Ardo expansion unit with15 I/O:s

Specifications

Specifications for IO-A15MIXW-3-BEM
Controller Type I/O-Module
Power Supply 24V AC, 24V DC
Mounting DIN-rail
Display No
Supported protocols EXOline, Modbus, BACnet
Port type Ethernet, RS-485
Power Supply 24 V ~ (21…27 V ~ 50…60 Hz) / 20…36 V DC / 4VA
Dimensions, external (WxHxD) 149x121x58 mm
Number of modules 8.5
RS485 ports 1
Ethernet ports 1
AI 4
UI 0
DI 4
AO 3
UA 0
DO 4
Specifications for Expansion units
Battery life time 5 years
Protection class IP20
Ambient humidity (non-condensing) 0…95 % RH
Storage temperature -20…70 °C
Mounting DIN-rail
Weight, incl. packaging 0.4 kg
